CRLH Parameter Extraction

Extract the equivalent-circuit parameters (L_R, C_R, L_L, C_L) of a Composite Right/Left-Handed (CRLH) unit cell from FDTD S-parameter simulation using the Bloch-wave dispersion relation.

This tutorial covers:

  • CRLH unit cell geometry (interdigital capacitor and shunt stub)

  • Bloch-wave dispersion parameter extraction from S11/S21

  • Comparison of extracted vs. target CRLH parameters

  • Building a CRLH structure via the CreateCRLH helper function

Octave/Matlab Script

Simulation Parameters

Define physical constants, working unit (micrometres), and the geometric dimensions of the CRLH unit cell and microstrip feed lines. The feed length must be long enough for the microstrip mode to settle before the de-embedding reference plane used in post-processing.

physical_constants;
unit = 1e-6; % specify everything in um

feed_length = 30000;

substrate_thickness = [1524 101 254];
substrate_epsr = [3.48 3.48 3.48];

CRLH.LL = 14e3;     %CRLH totel (line) length
CRLH.LW = 4e3;      %CRLH unit cell width (without the stubs)
CRLH.GLB = 1950;    %CRLH gap width bottom layer
CRLH.GLT = 4700;    %CRLH gap width top layer
CRLH.SL = 7800;     %CRLH stub length (bottom layer, both sides)
CRLH.SW = 1000;     %CRLH stub width  (bottom layer, both sides)
CRLH.VR = 250;      %CRLH via hole radius (stub -> ground)
CRLH.TopSig = sum(substrate_thickness);  %top layer height
CRLH.BottomSig = CRLH.TopSig - substrate_thickness(end);  %bottom layer height

% frequency range of interest
f_start = 0.8e9;
f_stop  = 6e9;

FDTD Parameters and Excitation

A Gaussian pulse centred at the band mid-point covers the full 0.8-6 GHz range in a single run. PML absorbers terminate the feed direction and the open top; MUR conditions damp the lateral faces; the PEC boundary on the bottom acts as the ground plane.

FDTD = InitFDTD();
FDTD = SetGaussExcite( FDTD, (f_start+f_stop)/2, (f_stop-f_start)/2 );
BC   = {'PML_8' 'PML_8' 'MUR' 'MUR' 'PEC' 'PML_8'};
FDTD = SetBoundaryCond( FDTD, BC );

Mesh Initialization and CRLH Unit Cell

Seed coarse anchor points, then delegate fine metal detail to CreateCRLH, which adds the top- and bottom-layer conductors, stubs, and via holes together with the mesh lines they require. SmoothMesh fills the gaps so that cell sizes grow at no more than a 1.5x ratio per step.

CSX = InitCSX();
resolution = c0/(f_stop*sqrt(max(substrate_epsr)))/unit /30; % resolution of lambda/30

mesh.x = [-feed_length-CRLH.LL/2 0 feed_length+CRLH.LL/2];
mesh.y = [-30000 0 30000];
substratelines = cumsum(substrate_thickness);
mesh.z = [0 cumsum(substrate_thickness) linspace(substratelines(end-1),substratelines(end),4) 20000];

% create the CRLH unit cell (will define additional fixed mesh lines)
[CSX mesh] = CreateCRLH(CSX, mesh, CRLH, resolution/4);

% Smooth the given mesh
mesh = SmoothMesh(mesh, resolution, 1.5, 'algorithm',[1 3]);
CSX = DefineRectGrid( CSX, unit, mesh );

Substrate Layers

Add each dielectric layer of the PCB stack as a separate material and fill the full simulation domain in x and y. Splitting the stack allows each layer to carry its own permittivity, even though all three share epsr = 3.48 in this example.

substratelines = [0 substratelines];
for n=1:numel(substrate_thickness)
    CSX = AddMaterial( CSX, ['substrate' int2str(n)] );
    CSX = SetMaterialProperty( CSX, ['substrate' int2str(n)], 'Epsilon', substrate_epsr(n) );
    start = [mesh.x(1),   mesh.y(1),   substratelines(n)];
    stop  = [mesh.x(end), mesh.y(end), substratelines(n+1)];
    CSX = AddBox( CSX, ['substrate' int2str(n)], 0, start, stop );
end

Microstrip Feed Ports

Attach one excited MSL port at the left feed end and one passive port at the right to sample the transmitted wave. MeasPlaneShift places the voltage/current integration plane at the midpoint of the feed, and FeedShift moves the excitation gap away from the simulation boundary.

CSX = AddMetal( CSX, 'PEC' );
portstart = [ mesh.x(1) , -CRLH.LW/2, substratelines(end)];
portstop  = [ -CRLH.LL/2,  CRLH.LW/2, 0];
[CSX,port{1}] = AddMSLPort( CSX, 999, 1, 'PEC', portstart, portstop, 0, [0 0 -1], 'ExcitePort', true, 'FeedShift', 10*resolution(1), 'MeasPlaneShift',  feed_length/2);

portstart = [ mesh.x(end) , -CRLH.LW/2, substratelines(end)];
portstop  = [ +CRLH.LL/2,   CRLH.LW/2, 0];
[CSX,port{2}] = AddMSLPort( CSX, 999, 2, 'PEC', portstart, portstop, 0, [0 0 -1], 'MeasPlaneShift',  feed_length/2 );

Write and Run the Simulation

Serialize the complete structure and solver settings to an XML file, then optionally inspect the geometry in AppCSXCAD before starting the solver. Viewing the geometry first is a quick sanity-check that catches structural errors before committing simulation time.

Sim_Path = 'tmp';
Sim_CSX = 'CRLH.xml';

CleanupSimPath(Sim_Path);

WriteOpenEMS( [Sim_Path '/' Sim_CSX], FDTD, CSX );
CSXGeomPlot( [Sim_Path '/' Sim_CSX] );
RunOpenEMS( Sim_Path, Sim_CSX );

S-Parameter Post-Processing

Transform the time-domain port signals to the frequency domain and shift the reference plane to the unit cell boundaries using calcPort. Plotting S11 and S21 gives an immediate check of return loss and insertion loss before proceeding to the equivalent circuit extraction.

close all
f = linspace( f_start, f_stop, 1601 );
port = calcPort( port, Sim_Path, f, 'RefPlaneShift', feed_length);

s11 = port{1}.uf.ref./ port{1}.uf.inc;
s21 = port{2}.uf.ref./ port{1}.uf.inc;

plot(f/1e9,20*log10(abs(s11)),'k-','LineWidth',2);
hold on;
grid on;
plot(f/1e9,20*log10(abs(s21)),'r--','LineWidth',2);
l = legend('S_{11}','S_{21}','Location','Best');
set(l,'FontSize',12);
ylabel('S-Parameter (dB)','FontSize',12);
xlabel('frequency (GHz) \rightarrow','FontSize',12);
ylim([-40 2]);

CRLH Lumped Parameter Extraction

Convert the two-port S-parameters to ABCD form and derive the series impedance Z and shunt admittance Y of the unit cell. The zero-crossings of Im(Z) and Im(Y) locate the series resonance fse and shunt resonance fsh, from which the four lumped elements LR, CL, CR, and LL follow.

A = ((1+s11).*(1-s11) + s21.*s21)./(2*s21);
C = ((1-s11).*(1-s11) - s21.*s21)./(2*s21) ./ port{2}.ZL;

Y = C;
Z = 2*(A-1)./C;

iZ = imag(Z);
iY = imag(Y);

fse = interp1(iZ,f,0);
fsh = interp1(iY,f,0);

df = f(2)-f(1);
fse_idx = find(f>fse,1);
fsh_idx = find(f>fsh,1);

LR = 0.5*(iZ(fse_idx)-iZ(fse_idx-1))./(2*pi*df);
CL = 1/(2*pi*fse)^2/LR;

CR = 0.5*(iY(fsh_idx)-iY(fsh_idx-1))./(2*pi*df);
LL = 1/(2*pi*fsh)^2/CR;

disp([' Series tank: CL = ' num2str(CL*1e12,3) 'pF;  LR = ' num2str(LR*1e9,3) 'nH -> f_se = ' num2str(fse*1e-9,3) 'GHz ']);
disp([' Shunt  tank: CR = ' num2str(CR*1e12,3) 'pF;  LL = ' num2str(LL*1e9,3) 'nH -> f_sh = ' num2str(fsh*1e-9,3) 'GHz ']);

Analytical Dispersion Relation

Compute the Bloch-Floquet wave-number for an infinite periodic CRLH array using the extracted lumped parameters LR, CL, CR, and LL. This analytical curve cross-checks the simulated dispersion and confirms that a single simulated cell is representative of the periodic lattice.

w = 2*pi*f;
wse = 2*pi*fse;
wsh = 2*pi*fsh;
beta_calc = real(acos(1-(w.^2-wse^2).*(w.^2-wsh^2)./(2*w.^2/CR/LR)));

Dispersion Diagram

Plot the simulated phase-constant beta derived from the S21 phase, the analytical Bloch-wave curve, and the beta of the feed MSL for reference. The backward-wave region at low frequencies confirms the left-handed character of the CRLH unit cell.

figure
beta = -angle(s21)/CRLH.LL/unit;
plot(abs(beta)*CRLH.LL*unit/pi,f*1e-9,'k-','LineWidth',2)
grid on;
hold on;
plot(beta_calc/pi,f*1e-9,'c--','LineWidth',2)
plot(real(port{2}.beta)*CRLH.LL*unit/pi,f*1e-9,'g-','LineWidth',2)
ylim([1 6])
xlabel('|\beta| p / \pi \rightarrow','FontSize',12)
ylabel('frequency (GHz) \rightarrow','FontSize',12)
l = legend('\beta_{CRLH, 1 cell}','\beta_{CRLH, \infty cells}','\beta_{MSL}','Location','East');
set(l,'FontSize',12);

Images

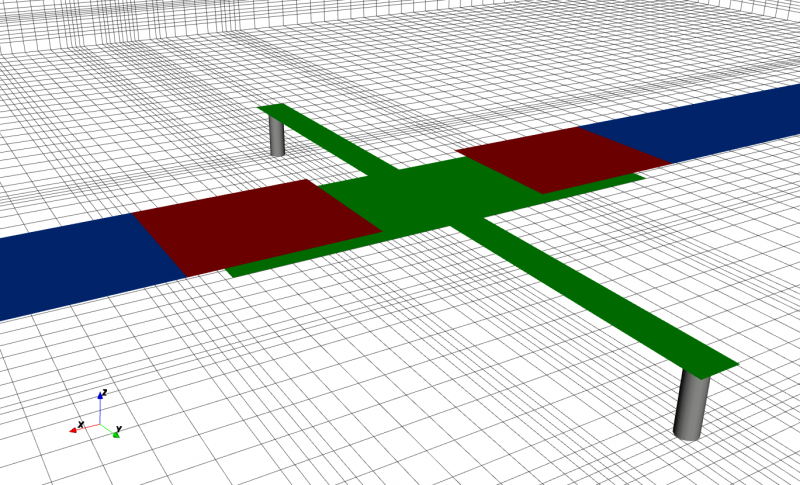

CRLH unit cell geometry

CRLH unit cell with interdigital capacitor and shunt stub (AppCSXCAD)

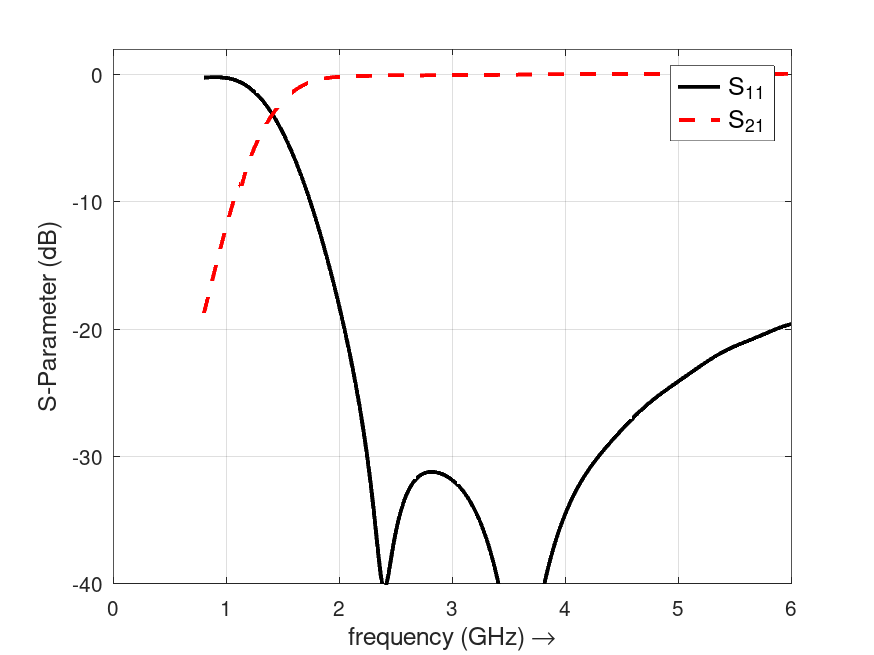

CRLH cell S-parameters

S-parameters of the CRLH unit cell

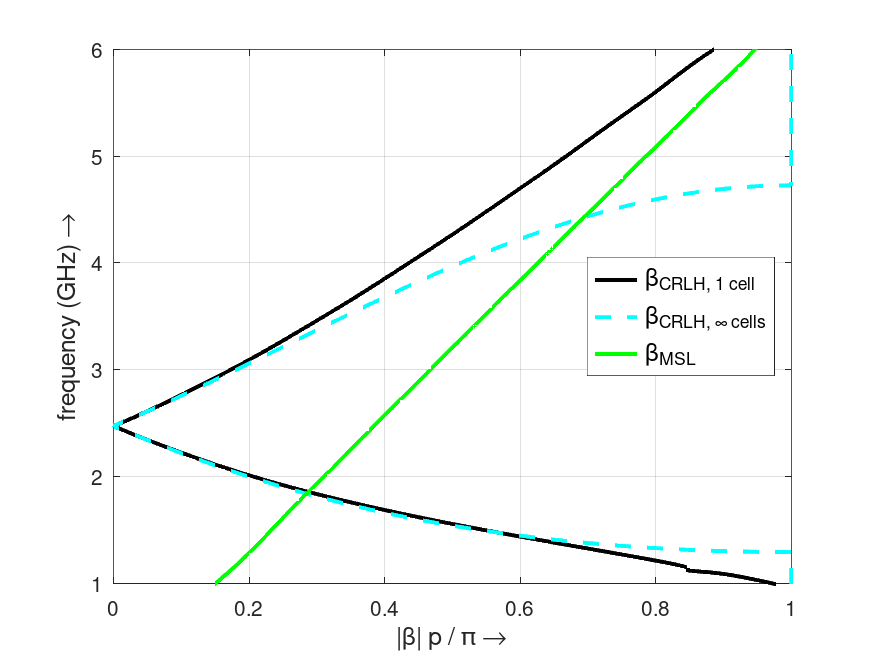

Bloch-wave dispersion diagram

Bloch-wave dispersion diagram showing the left- and right-handed bands

Notes

  • See the MSL Notch Filter tutorial for an introduction to microstrip line ports and the 1/3–2/3 mesh rule used in CreateCRLH.

  • The extracted unit cell can be used directly in the CRLH Leaky Wave Antenna tutorial.
