MRI Linear Polarized Birdcage Coil

Simulate a linear-polarized birdcage coil for MRI at 297 MHz (7 T), tune the resonance with distributed capacitors, and evaluate B1 field homogeneity.

This tutorial covers:

  • Birdcage coil geometry with multiple rungs and end rings

  • Distributed lumped capacitors for resonance tuning

  • B1 field homogeneity assessment across the coil bore

Octave/Matlab Script

Human Body Model (Virtual Family)

Convert the voxel body model to a discretized HDF5 material file usable by openEMS. The Virtual Family provides realistic tissue properties (permittivity and conductivity) at the simulation frequency, which are essential for accurate SAR predictions. The converted file is cached on disk to avoid repeating this time-consuming step on re-runs. If the VF dataset is not installed the script falls back automatically to a homogeneous cylindrical phantom with average head-tissue properties at 128 MHz — no manual changes are required.

% set file name for human body model to create with "Convert_VF_DiscMaterial"
% the file name should contain a full path
body_model_file = [pwd '/Ella_centered_' num2str(f0/1e6) 'MHz.h5'];

% convert only part of the model (head/shoulder section)
body_model_range = {[],[],[-0.85 0]};

body_mesh_res = 2.5; % should be something like: BC.stripwidth/4

% paths to virtual family voxel models (VFVM), adept to your install!
VF_raw_filesuffix = '/tmp/Ella_26y_V2_1mm';
VF_mat_db_file = '/tmp/DB_h5_20120711_SEMCADv14.8.h5';

% delete(body_model_file); % uncomment to delete old model if something changed

% use cached HDF5 if it already exists; otherwise try to convert from raw VF files;
% fall back to a homogeneous phantom if the VF dataset is unavailable
use_body_model = exist(body_model_file, 'file') == 2;
if ~use_body_model
    try
        Convert_VF_DiscMaterial(VF_raw_filesuffix, VF_mat_db_file, body_model_file, ...
                                'Frequency', f0, 'Center', 1, ...
                                'Range', body_model_range);
        use_body_model = 1;
    catch
        warning('openEMS:MRI_LP_Birdcage', ...
            'VF body model not found — using homogeneous cylindrical phantom fallback.');
    end
end

% rotate model to face the nose in +y-dir, and translate
body_model_transform = {'Rotate_X',pi,'Rotate_Z',pi, ...
                        'Translate',[0,5,-720]};

Simulation Parameters

Load physical constants and define the drawing unit and termination criterion. The end criterion of -50 dB ensures the fields have decayed sufficiently for accurate frequency-domain post-processing; the minimum wavelength at the pulse bandwidth determines the required mesh resolution.

physical_constants % load important physical constants
end_crit = 1e-5;    %abort simulation at -50dB energy drop
unit = 1e-3;        %drawing unit used

%capacity footprint is 4mm x 4mm
lambda_min = c0/(excite.f_0+excite.f_c);

% meshing options
% desired mesh resolution
mesh_res([1 3]) = min(15,lambda_min/20/unit);
mesh_res(2) = body_mesh_res / BC.rad;

FDTD Solver Setup and Excitation

Initialize the cylindrical FDTD solver and define the Gaussian excitation pulse. The cylindrical coordinate system naturally exploits the rotational symmetry of the birdcage; the two sub-grids at 10 mm and 20 mm radius provide finer cell sizes near the body model without inflating the global cell count.

FDTD = InitFDTD('CoordSystem', 1, ... %init a cylindrical FDTD setup
    'EndCriteria', 1e-4, ... % with an end criteria of -40dB (1e-4)
    'MultiGrid', '10,20',... % add two cylindrical sub-grids at a radius of 10 and 20 mm
    'CellConstantMaterial', 1); % assume a material is constant inside
                                % a cell (material probing in cell center)

% define the excitation time-signal (unmodulated gaussian pulse)
FDTD = SetGaussExcite(FDTD,excite.f_0,excite.f_c);

% define & set boundary conditions
%   - pml in +/- z-direction
%   - boundaries in -r and +/- alpha direction disabled (full cylindrical mesh)
%   - PEC boundary in +r-direction to model bore RF shield
FDTD = SetBoundaryCond(FDTD, [0 0 0 0 3 3]);

CSXCAD Geometry and Mesh Initialization

Initialize the CSXCAD geometry container with a cylindrical coordinate system and allocate empty mesh arrays. Starting with empty arrays lets each subsequent AddBox/AddPort call contribute edge positions that are later collected by DetectEdges before the mesh is smoothed and finalized.

CSX = InitCSX('CoordSystem',1);

% init empty mesh structure
mesh.r = [];
mesh.a = [];
mesh.z = [];

Birdcage Coil Construction

Build the low-pass birdcage structure by iterating over all N rungs. Each rung carries a top and bottom lumped capacitor that sets the resonant frequency; ports 1 and 3 are excited with a 90-degree phase shift to drive the circularly polarized B1 field required for MRI spin excitation.

CSX = AddMetal(CSX,'metal');
CSX = AddLumpedElement(CSX,'caps','z','C',BC.cap);

da_Strip = BC.stripwidth/BC.rad; % width of a strip in radiant
da_Caps = BC.portwidth/BC.rad;   % width of a cap/port in radiant
da_Segs = 2*pi/BC.N_rungs;       % width of a rung in radiant

a_start = -pi-da_Segs/2;         % starting angle

w0 = 2*pi*f0;
T0 = 1/f0;

% port counter
port_Nr = 1;

a0 = a_start;

for n=1:BC.N_rungs
    start = [BC.rad a0+da_Segs/2-da_Caps/2 -0.5*BC.portlength];
    stop  = [BC.rad a0+da_Segs/2+da_Caps/2 +0.5*BC.portlength];
    CSX = AddBox(CSX,'caps',1, start, stop);

    start = [BC.rad a0+da_Segs/2-da_Caps/2 0.5*BC.length-BC.stripwidth/2-BC.portlength];
    stop  = [BC.rad a0+da_Segs/2+da_Caps/2 0.5*BC.length-BC.stripwidth/2];
    if (~isempty(intersect(n, BC.feed_pos)) && (BC.feed_amp(port_Nr)~=0)) % active port
        exc_amp = abs(BC.feed_amp(port_Nr));

        % calculate time delay to achieve a given phase shift at f0
        T = -angle(BC.feed_amp(port_Nr)) / w0;
        if T<0
            T = T + T0;
        end
        [CSX port{port_Nr}] = AddLumpedPort(CSX, 100, port_Nr, 50, start, stop, [0 0 1]*exc_amp, true,'Delay',T);

        %increase port count
        port_Nr = port_Nr+1;

        start = [BC.rad a0+da_Segs/2-da_Strip/2 0.5*BC.length-BC.stripwidth/2-BC.portlength];
    elseif ~isempty(intersect(n, BC.feed_pos))  % passive port
        [CSX port{port_Nr}] = AddLumpedPort(CSX, 100, port_Nr, 50, start, stop, [0 0 1], false);

        %increase port count
        port_Nr = port_Nr+1;

        start = [BC.rad a0+da_Segs/2-da_Strip/2 0.5*BC.length-BC.stripwidth/2-BC.portlength];
    else
        start = [BC.rad a0+da_Segs/2-da_Strip/2 0.5*BC.length];
    end

    % the start z-coordinate depends on the port (see above)
    stop  = [BC.rad a0+da_Segs/2+da_Strip/2 0.5*BC.portlength];
    CSX = AddBox(CSX,'metal',1, start, stop);

    start = [BC.rad a0+da_Segs/2-da_Strip/2 -0.5*BC.length];
    stop  = [BC.rad a0+da_Segs/2+da_Strip/2 -0.5*BC.portlength];
    CSX = AddBox(CSX,'metal',1, start, stop);

    % some additional mesh lines
    mesh.a = [mesh.a a0+da_Segs/2];

    a0 = a0 + da_Segs;
end

% create metal top ring
start = [BC.rad a_start      -(BC.length-BC.stripwidth)/2];
stop  = [BC.rad a_start+2*pi -(BC.length+BC.stripwidth)/2];
CSX = AddBox(CSX,'metal',1, start, stop);

% create metal bottom ring
start = [BC.rad a_start      (BC.length-BC.stripwidth)/2];
stop  = [BC.rad a_start+2*pi (BC.length+BC.stripwidth)/2];
CSX = AddBox(CSX,'metal',1, start, stop);

Mesh Smoothing

Detect structure edges and generate graded mesh lines in all three coordinate directions. SmoothMeshLines transitions from the fine body-model resolution near the axis to a coarser grid toward the bore wall, limiting total cell count while preserving accuracy where the fields vary most rapidly.

mesh = DetectEdges(CSX, mesh);
mesh.r = [0 SmoothMeshLines([body_mesh_res*1.5 mesh.r], body_mesh_res)];
mesh.z = SmoothMeshLines(mesh.z, body_mesh_res);

mesh.r = [mesh.r Bore.rad]; %mesh lines in radial direction
mesh.z = [-Bore.length/2 mesh.z Bore.length/2]; %mesh lines in z-direction

mesh = SmoothMesh(mesh, mesh_res, 1.5);

Cell Count Sanity Check

Compute the total number of FDTD cells as an early warning before committing to the long simulation. With approximately 700 MB RAM and 7 hours run time at 65 MC/s, an unexpectedly large mesh should be caught and diagnosed here.

numCells = numel(mesh.r)*numel(mesh.a)*numel(mesh.z);

Body Model Material Assignment

When the VF dataset is available, the discretized body model is inserted as a disc material covering the full mesh extent; the spatial transform orients Ella so the nose points in the +y direction and the head/shoulder section aligns with the coil centre. Without VF data a bundled 3-layer cylindrical body phantom (skin / bone / tissue, properties at 128 MHz from the IT’IS database, radius 100 mm) is used. The cylindrical FDTD mesh converts each cell centre (r, alpha, z) to Cartesian before the disc-material lookup, so the Cartesian phantom mesh is sampled correctly. Scale is the same as for the VF model since the phantom mesh is also in metres.

if use_body_model
    CSX = AddDiscMaterial(CSX, 'body_model', 'File', body_model_file, 'Scale', 1/unit, 'Transform', body_model_transform);
    start = [mesh.r(1)   mesh.a(1)   mesh.z(1)];
    stop =  [mesh.r(end) mesh.a(end) mesh.z(end)];
    CSX = AddBox(CSX, 'body_model', 0, start, stop);
else
    phantom_file = fullfile(fileparts(mfilename('fullpath')), '..', '..', 'resources', 'phantoms', 'phantom_body_128MHz.h5');
    CSX = AddDiscMaterial(CSX, 'body_model', 'File', phantom_file, 'Scale', 1/unit);
    start = [mesh.r(1)   mesh.a(1)   mesh.z(1)];
    stop =  [mesh.r(end) mesh.a(end) mesh.z(end)];
    CSX = AddBox(CSX, 'body_model', 0, start, stop);
end

Field and SAR Dump Boxes

Define volumetric dump regions for the E-field, H-field, and SAR inside the coil bore. Frequency-domain dumps (DumpMode 2) at f0 capture steady-state complex fields needed for B1 mapping and SAR evaluation without storing a full time series.

start = [0      mesh.a(1)   -BC.length/2];
stop =  [BC.rad mesh.a(end) +BC.length/2];

CSX = AddDump(CSX,'Ef','FileType',1,'DumpType',10,'DumpMode',2,'Frequency',f0);
CSX = AddBox(CSX,'Ef',0 , start,stop);

CSX = AddDump(CSX,'Hf','FileType',1,'DumpType',11,'DumpMode',2,'Frequency',f0);
CSX = AddBox(CSX,'Hf',0 , start,stop);

CSX = AddDump(CSX,'SAR','FileType',1,'DumpType',20,'DumpMode',2,'Frequency',f0);
CSX = AddBox(CSX,'SAR',0 , start,stop);

start = [0      mesh.a(1)   0];
stop =  [BC.rad mesh.a(end) 0];
CSX = AddDump(CSX,'Ht','FileType',1,'DumpType',1,'DumpMode',2);
CSX = AddBox(CSX,'Ht',0 , start,stop);

Mesh Finalization

Append PML absorbing layers in the +/- z directions and commit the mesh to CSXCAD. The 10-cell PML thickness provides adequate absorption at the axial boundaries; the bore PEC wall in +r models the RF shield.

% add some lines for the pml in +/- z- direction
mesh = AddPML(mesh, [0 0 0 0 10 10], 1);

% define the mesh
CSX = DefineRectGrid(CSX, unit, mesh);

Write Geometry and Run Simulation

Export the CSXCAD structure to XML and launch the openEMS solver. Setting postproc_only = 1 at the top of the file skips both the write and solve steps so you can iterate on post-processing without repeating the ~7-hour run.

Sim_Path = ['tmp_' mfilename];

if (postproc_only==0)
    CleanupSimPath(Sim_Path);

    WriteOpenEMS([Sim_Path '/BirdCage.xml'],FDTD,CSX);
end

if (GeomPlot==1)
    CSXGeomPlot( [Sim_Path '/BirdCage.xml'] , ['--export-polydata-vtk=' Sim_Path ' --RenderDiscMaterial -v']);
end

if (postproc_only==0)
    RunOpenEMS(Sim_Path, 'BirdCage.xml');
end

S-Parameter Calculation

Calculate port S-parameters over the excitation bandwidth from the simulated port voltages. The S11 and S22 values may exceed 0 dB because all ports are excited simultaneously and port isolation is imperfect; this is expected behavior for a multi-port birdcage driven in quadrature.

freq = linspace(excite.f_0-excite.f_c,excite.f_0+excite.f_c,201);
port = calcPort(port, Sim_Path, freq);

close all
s11 = port{1}.uf.ref./port{1}.uf.inc;
s22 = port{2}.uf.ref./port{2}.uf.inc;

% the s-parameter may be larger than 1 (0dB) since all ports are excited
% and do not have a perfect port isolation
plot(freq*1e-6,20*log10(abs(s11)),'Linewidth',2)
hold on
grid on
plot(freq*1e-6,20*log10(abs(s22)),'r--','Linewidth',2)
legend('s11','s22');

SAR Distribution Plot

Read the frequency-domain SAR dump at the axial mid-plane and display the local power absorption map. Hotspots in the SAR image highlight regions where tissue heating may approach regulatory limits (IEC 60601-2-33 for 3T MRI).

[SAR SAR_mesh] = ReadHDF5Dump([Sim_Path '/SAR.h5'],'Range',{[],[],0},'CloseAlpha',1);
SAR = SAR.FD.values{1};

% SAR plot
figure()
[R A] = ndgrid(SAR_mesh.lines{1},SAR_mesh.lines{2});
X = R.*cos(A);Y = R.*sin(A);
colormap('hot');
h = pcolor(X,Y,(squeeze(SAR)));
% h = pcolor(X,Y,log10(squeeze(SAR)));
set(h,'EdgeColor','none');
xlabel('x -->');
ylabel('y -->');
title('local SAR');
axis equal tight

B1 Field Analysis

Decompose the complex H-field into the circularly polarized B1+ (transmit) and B1- (receive) components. The conversion from cylindrical (r, alpha) to Cartesian coordinates is required before forming B1+/- = (Bx +/- j*By)/2; good B1+ uniformity inside the phantom indicates proper coil tuning.

[H_field H_mesh] = ReadHDF5Dump([Sim_Path '/Hf.h5'],'Range',{[0 0.1],[],0},'CloseAlpha',1);
% create a 2D grid to plot on
[R A] = ndgrid(H_mesh.lines{1},H_mesh.lines{2});
X = R.*cos(A);
Y = R.*sin(A);

% calc Bx,By (from Br and Ba), B1p, B1m
Bx = MUE0*(H_field.FD.values{1}(:,:,:,1).*cos(A) - H_field.FD.values{1}(:,:,:,2).*sin(A));
By = MUE0*(H_field.FD.values{1}(:,:,:,1).*sin(A) + H_field.FD.values{1}(:,:,:,2).*cos(A));
B1p = 0.5*(Bx+1j*By);
B1m = 0.5*(Bx-1j*By);

Dump2VTK([Sim_Path '/B1p_xy.vtk'], abs(B1p), H_mesh, 'B-Field');
Dump2VTK([Sim_Path '/B1m_xy.vtk'], abs(B1m), H_mesh, 'B-Field');

maxB1 = max([abs(B1p(:)); abs(B1m(:))]);

% B1+ plot
figure()
subplot(1,2,1);
h = pcolor(X,Y,abs(B1p));
set(h,'EdgeColor','none');
xlabel('x -->');
ylabel('y -->');
title('B_1^+ field (dB)');
caxis([0 maxB1]);
axis equal tight

% B1- plot
subplot(1,2,2);
h = pcolor(X,Y,abs(B1m));
set(h,'EdgeColor','none');
xlabel('x -->');
ylabel('y -->');
title('B_1^- field (dB)');
caxis([0 maxB1]);
axis equal tight

VTK Export for 3D Visualization

Export the H-field and SAR axial slices to VTK files for interactive 3D visualization in ParaView. These files complement the inline Matlab/Octave plots with the full spatial context of the cylindrical field distribution.

ConvertHDF5_VTK([Sim_Path '/Hf.h5'],[Sim_Path '/Hf_xy'],'Range',{[],[],0},'CloseAlpha',1)
ConvertHDF5_VTK([Sim_Path '/SAR.h5'],[Sim_Path '/SAR_xy'],'Range',{[],[],0},'CloseAlpha',1)

Images

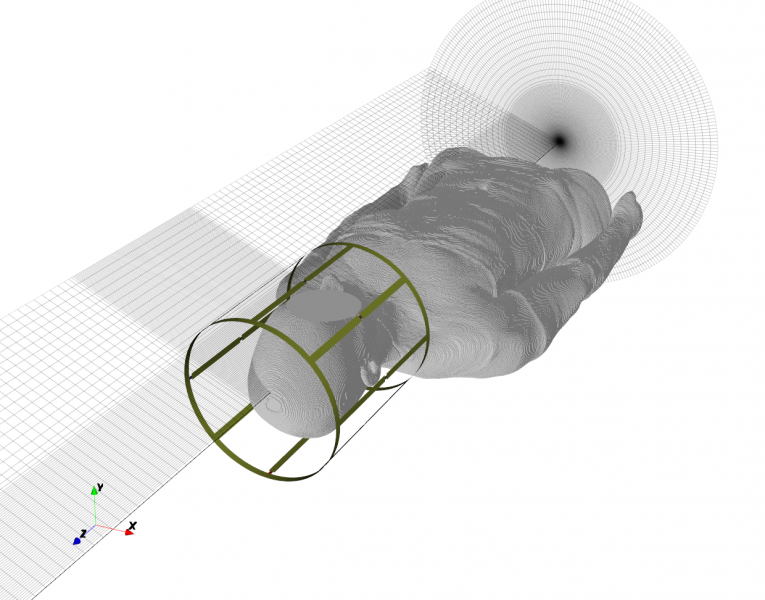

3D geometry of the birdcage coil

3D view of the linear-polarized birdcage coil (AppCSXCAD)

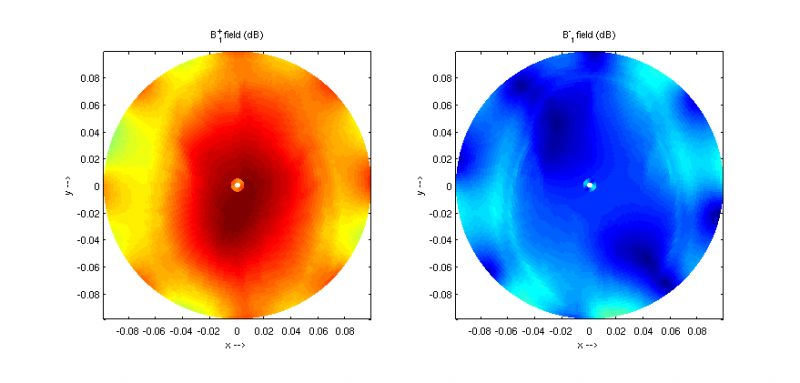

B1 field distribution

B1 field distribution inside the coil bore

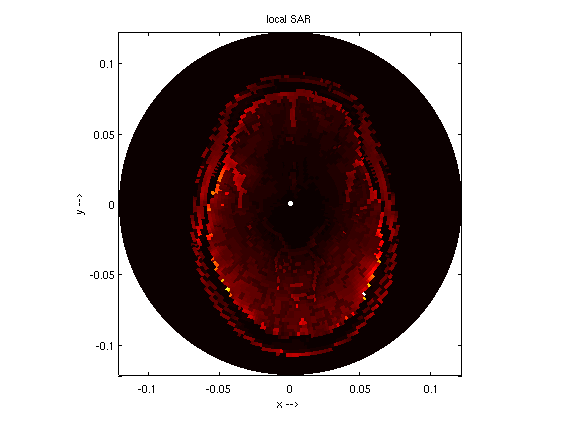

SAR distribution

SAR distribution in the phantom

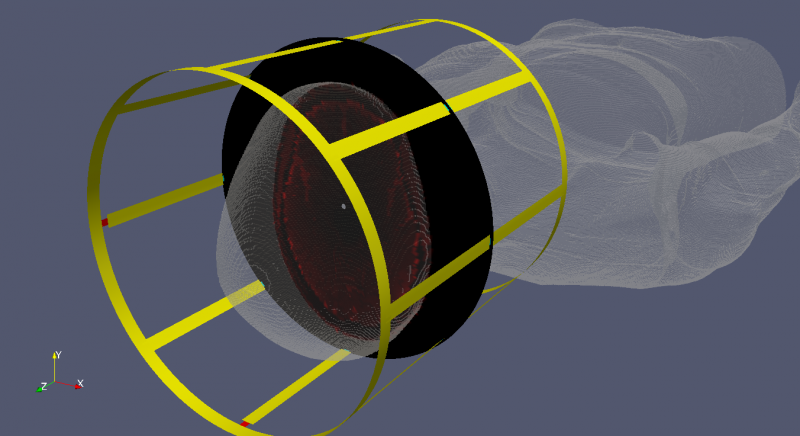

3D SAR distribution

3D SAR distribution

Body Model

This tutorial uses the Ella voxel body model from the IT’IS Virtual Family dataset (Ella_26y_V2_1mm). The dataset is free for academic and non-commercial use but requires registration and a license agreement from the IT’IS Foundation (https://itis.swiss/virtual-population/).

Once downloaded, the raw files are converted to an openEMS HDF5 DiscMaterial file by Convert_VF_DiscMaterial (run once, result is cached).

Automatic phantom fallback:

If the VF dataset is not installed, the script falls back automatically to the bundled resources/phantoms/phantom_body_128MHz.h5 — a 3-layer cylindrical body phantom (skin / bone / tissue, radius 100 mm) with tissue properties at 128 MHz from the IT’IS database, shared with the Python interface. The cylindrical FDTD solver converts each cell-centre position from cylindrical to Cartesian before the disc-material lookup, so the Cartesian phantom mesh is sampled correctly. The full B1 and SAR workflow runs without any changes.

Literature

  • A. Christ et al., “The Virtual Family — Development of surface-based anatomical models of two adults and two children for dosimetric simulations,” Phys. Med. Biol., vol. 55, 2010.
