UWB Radar — Delay and Fidelity

Simulate a simple UWB monopole antenna across IEEE 802.15.4 channels and compute delay and fidelity as figures of merit for time-domain pulse integrity. Simulation time: ~3 min.

This tutorial covers:

Channel-configurable Gaussian excitation matched to IEEE 802.15.4 UWB bandwidths (channels 1–5, 7)
Advanced meshing: fine resolution near antenna structures, coarser resolution in free space, graded via SmoothMeshLines
DelayFidelity() for time-domain pulse characterization
Polar plots of delay (mm) and fidelity (%) vs. angle
Comparison across multiple UWB channels

Octave/Matlab Script

Simulation Overview

This tutorial investigates the time-domain performance of a simple UWB monopole antenna: delay (retardation from source to phase centre) and fidelity (normalized similarity between excitation and radiated waveform). The Gaussian excitation is matched to IEEE 802.15.4 UWB channel bandwidths. Dispersion and off-resonance effects are clearly visible when switching between channels.

 clear;
 close all;

physical_constants;

Channel Configuration

Select one channel by uncommenting its suffix, f_0 and f_c lines. f_c converts the IEEE 802.15.4 20 dB bandwidth to the Gaussian 3 dB bandwidth. Only one block should be active at a time; the active block is channel4 (default).

%suffix = "channel1";
%f_0 = 3.5e9; % center frequency of the channel
%f_c = 0.25e9 / 0.3925; % 3dB bandwidth is 0.3925 times 20dB bandwidth for Gaussian excitation

%suffix = "channel2";
%f_0 = 4.0e9; % center frequency of the channel
%f_c = 0.25e9 / 0.3925;

%suffix = "channel3";
%f_0 = 4.5e9; % center frequency of the channel
%f_c = 0.25e9 / 0.3925;

suffix = "channel4";
f_0 = 4.0e9; % center frequency of the channel
f_c = 0.5e9 / 0.3925;

%suffix = "channel5";
%f_0 = 6.5e9; % center frequency of the channel
%f_c = 0.25e9 / 0.3925;

%suffix = "channel7";
%f_0 = 6.5e9; % center frequency of the channel
%f_c = 0.5e9 / 0.3925;

%suffix = "channel4twice"; % this is just to demonstrate the degradation of the fidelity with increasing bandwidth
%f_0 = 4.0e9; % center frequency of the channel
%f_c = 1e9 / 0.3925;

tilt = 45 * pi / 180; % polarization tilt angle against co-polarization (90DEG is cross polarized)

Antenna and Substrate Parameters

A planar monopole on an FR4 substrate (εr = 4) is defined. The gap between the feed line and the patch controls the impedance matching; patchsize sets the physical length of the monopole element.

% path and filename setup
Sim_Path = 'tmp';
Sim_CSX = 'uwb.xml';

% properties of the substrate
substrate.epsR = 4; % FR4
substrate.height = 0.707;
substrate.cells = 3; % thickness in cells

% size of the monopole and the gap to the ground plane
gap = 0.62; % 0.5
patchsize = 14;

% we will use millimeters
unit = 1e-3;

% set the resolution for the finer structures, e.g. the antenna gap
fineResolution = C0 / (f_0 + f_c) / sqrt(substrate.epsR) / unit / 40;
% set the resolution for the coarser structures, e.g. the surrounding air
coarseResolution = C0/(f_0 + f_c) / unit / 20;

Geometry Setup

DetectEdges locates metal boundaries and applies the 1/3–2/3 edge rule automatically. SmoothMesh then grades from fine resolution near the antenna to coarse resolution in free space.

% initialize the CSX structure
CSX = InitCSX();

% add the properties which are used to model the antenna
CSX = AddMetal(CSX, 'Ground' );
CSX = AddMetal(CSX, 'Patch');
CSX = AddMetal(CSX, 'Line');
CSX = AddMaterial(CSX, 'Substrate' );
CSX = SetMaterialProperty(CSX, 'Substrate', 'Epsilon', substrate.epsR);

% define the supstrate and sheet-like primitives for the properties
CSX = AddBox(CSX, 'Substrate', 1, [-16, -16, -substrate.height], [16, 18, 0]);
CSX = AddBox(CSX, 'Ground', 2, [-16, -16, -substrate.height], [16, 0, -substrate.height]);
CSX = AddBox(CSX, 'Line', 2, [-1.15, -16, 0], [1.15, gap, 0]);
CSX = AddBox(CSX, 'Patch', 2, [-patchsize/2, gap, 0], [patchsize/2, gap + patchsize, 0]);

% setup a mesh
mesh.x = [];
mesh.y = [];

% two mesh lines for the metal coatings of the substrate
mesh.z = linspace(-substrate.height, 0, substrate.cells +1);

% find optimal mesh lines for the patch and ground, not yes the microstrip line
mesh = DetectEdges(CSX, mesh, 'SetProperty',{'Patch', 'Ground'}, '2D_Metal_Edge_Res', fineResolution/2);

%replace gap mesh lines which are too close by a single mesh line
tooclose = find (diff(mesh.y) < fineResolution/4);
if ~isempty(tooclose)
  mesh.y(tooclose) = (mesh.y(tooclose) + mesh.y(tooclose+1))/2;
  mesh.y(tooclose + 1) = [];
endif

% store the microstrip  edges in a temporary variable
meshline = DetectEdges(CSX, [], 'SetProperty', 'Line', '2D_Metal_Edge_Res', fineResolution/2);
% as well as the edges of the substrate (without 1/3 - 2/3 rule)
meshsubstrate = DetectEdges(CSX, [], 'SetProperty', 'Substrate');
% add only the x mesh lines of the microstrip
mesh.x = [mesh.x meshline.x];
% and only the top of the substrate, the other edges are covered by the ground plane
mesh.y = [mesh.y, meshsubstrate.y(end)]; % top of substrate

% for now we have only the edges, now calculate mesh lines in between
mesh = SmoothMesh(mesh, fineResolution);

% add the outer boundary
mesh.x = [mesh.x -60, 60];
mesh.y = [mesh.y, -60, 65];
mesh.z = [mesh.z, -46, 45];

% add coarse mesh lines for the free space
mesh = SmoothMesh(mesh, coarseResolution);

% define the grid
CSX = DefineRectGrid( CSX, unit, mesh);
% and the feeding port
[CSX, port] = AddLumpedPort( CSX, 999, 1, 50, [-1.15, meshline.y(2), -substrate.height], [1.15, meshline.y(2), 0], [0 0 1], true);

%setup a NF2FF box for the calculation of the far field
start = [mesh.x(10)     mesh.y(10)     mesh.z(10)];
stop  = [mesh.x(end-9) mesh.y(end-9) mesh.z(end-9)];
[CSX nf2ff] = CreateNF2FFBox(CSX, 'nf2ff', start, stop);

FDTD Configuration

OverSampling increases the time-domain sample rate above the Nyquist minimum to improve delay estimation accuracy via DelayFidelity(). All six faces use PML absorbing boundaries to model an open radiating space.

% initialize the FDTD structure with excitation and open boundary conditions
FDTD = InitFDTD( 'NrTs', 30000, 'EndCriteria', 1e-5, 'OverSampling', 20);
FDTD = SetGaussExcite(FDTD, f_0, f_c );
BC   = {'PML_8' 'PML_8' 'PML_8' 'PML_8' 'PML_8' 'PML_8'};
FDTD = SetBoundaryCond(FDTD, BC );

Run the Simulation

The geometry is written to XML, optionally previewed, then passed to the FDTD solver. Re-run with a different channel suffix to compare results.

% remove old data, show structure, calculate new data
CleanupSimPath(Sim_Path);

% write the data to the working directory
WriteOpenEMS([Sim_Path '/' Sim_CSX], FDTD, CSX);
% show the geometry for checking
CSXGeomPlot([Sim_Path '/' Sim_CSX]);
% run the simulation
RunOpenEMS( Sim_Path, Sim_CSX);

Post-Processing

DelayFidelity() computes far-field delay (in mm of equivalent path length) and fidelity (0–1) vs. angle. Both are plotted using polarFF() by mapping the values onto the directivity scale. Plots are saved as PNG files named by channel suffix so runs can be compared side by side.

% plot amplitude and phase of the reflection coefficient
freq  = linspace(f_0-f_c, f_0+f_c, 200);
port = calcPort(port, Sim_Path, freq);
s11 = port.uf.ref ./ port.uf.inc;
s11phase = unwrap(arg(s11));
figure %("visible", "off"); % use this to plot only into files at the end of this script
ax = plotyy( freq/1e6, 20*log10(abs(s11)), freq/1e6, s11phase);
grid on
title( ['reflection coefficient ', suffix, ' S_{11}']);
xlabel( 'frequency f / MHz' );
ylabel( ax(1), 'reflection coefficient |S_{11}|' );
ylabel(ax(2), 'S_{11} phase (rad)');

% define an azimuthal trace around the monopole
phi = [0] * pi / 180;
theta = [-180:10:180] * pi / 180;

% calculate the delay, the fidelity and the farfield
[delay, fidelity, nf2ff] = DelayFidelity(nf2ff, port, Sim_Path, sin(tilt), cos(tilt), theta, phi, f_0, f_c, 'Mode', 1);

%plot the gain at (close to) f_0
f_0_nearest_ind = nthargout(2, @min, abs(nf2ff.freq -f_0));
%turn directivity into gain
nf2ff.Dmax(f_0_nearest_ind) *= nf2ff.Prad(f_0_nearest_ind) / calcPort(port, Sim_Path, nf2ff.freq(f_0_nearest_ind)).P_inc;
figure %("visible", "off");
polarFF(nf2ff, 'xaxis', 'theta', 'freq_index', f_0_nearest_ind, 'logscale', [-4, 4]);
title(["gain ", suffix, " / dBi"]);


% We trick polarFF into plotting the delay in mm because
% the axes of the vanilla polar plot can not be scaled.
plotvar = delay * C0 * 1000;
maxplot = 80;
minplot = 30;
nf2ff.Dmax(1) = 10^(max(plotvar)/10);
nf2ff.E_norm{1} = 10.^(plotvar/20);
figure %("visible", "off");
polarFF(nf2ff, 'xaxis', 'theta', 'logscale', [minplot, maxplot]);
title(["delay ", suffix, " / mm"]);

% The same for the fidelity in percent.
plotvar = fidelity * 100;
maxplot = 100;
minplot = 98;
nf2ff.Dmax(1) = 10^(max(plotvar)/10);
nf2ff.E_norm{1} = 10.^(plotvar/20);
figure %("visible", "off");
polarFF(nf2ff, 'xaxis', 'theta', 'logscale', [minplot, maxplot]);
title(["fidelity ", suffix, " / %"]);

% save the plots in order to compare them after simulating the different channels
print(1, [Sim_Path, "/s11_", suffix, ".png"]);
print(2, [Sim_Path ,"/farfield_", suffix, ".png"]);
print(3, [Sim_Path, "/delay_mm_", suffix, ".png"]);
print(4, [Sim_Path, "/fidelity_", suffix, ".png"]);
return;

Images

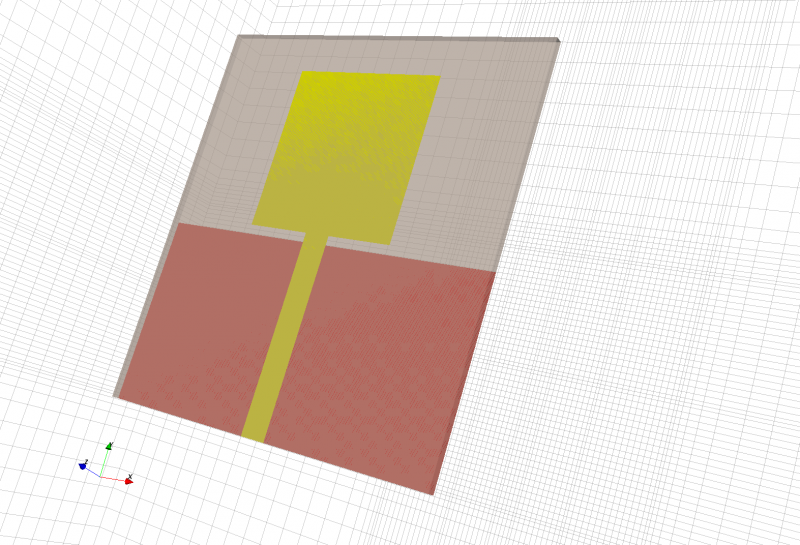

UWB antenna geometry — UWB monopole antenna geometry (AppCSXCAD)
